  1. Extensible Modules
  2. Robot Arm

Upgrade your older Bittle/Bittle X for the robotics arm gripper

PreviousRobot ArmNextJoystick with Micro:Bit

Last updated 27 days ago

Was this helpful?

The older Bittle/Bittle X models have different hardware configurations. The following table shows what components need to be upgraded for different models to work with :

  • A red color means the part must be upgraded

  • A green color means the part can be reused.

  • A blue color indicates that the board's wiring and other configurations must be adjusted.

Current board
Current servos
You need these for the upgrades

Bittle X+Arm

BiBoard V1

Feedback alloy servos

N/A

Bittle Robotics kit

NyBoard

Alloy servos

BiBoard V1

Bittle STEM kit

NyBoard

Lite(plastic) servos

BiBoard V1 + alloy servos(with or without feedback)

Bittle X V1

BiBoard V0

Lite(plastic) servos

Alloy servos(with or without feedback)

The simplest solution is to buy the newest components to match the Bittle X+Arm configuration. We offer discounted combo kits to help you upgrade.

The following instructions will guide you in reconfiguring the BiBoard V0 for the Arm. You must complete all the following steps.

1. BiBoard V0 Re-configuration

The arm's alloy servos require much more current. To bypass the fuse (marked X30 or X70), you must directly solder its two ends.

2. Firmware

You will need to upgrade the firmware via Firmware Uploader with the following option:

Model: Bittle X+Arm

Board: BiBoard V0_* (Select the corresponding option based on the robot's mainboard model)

Mode: Standard

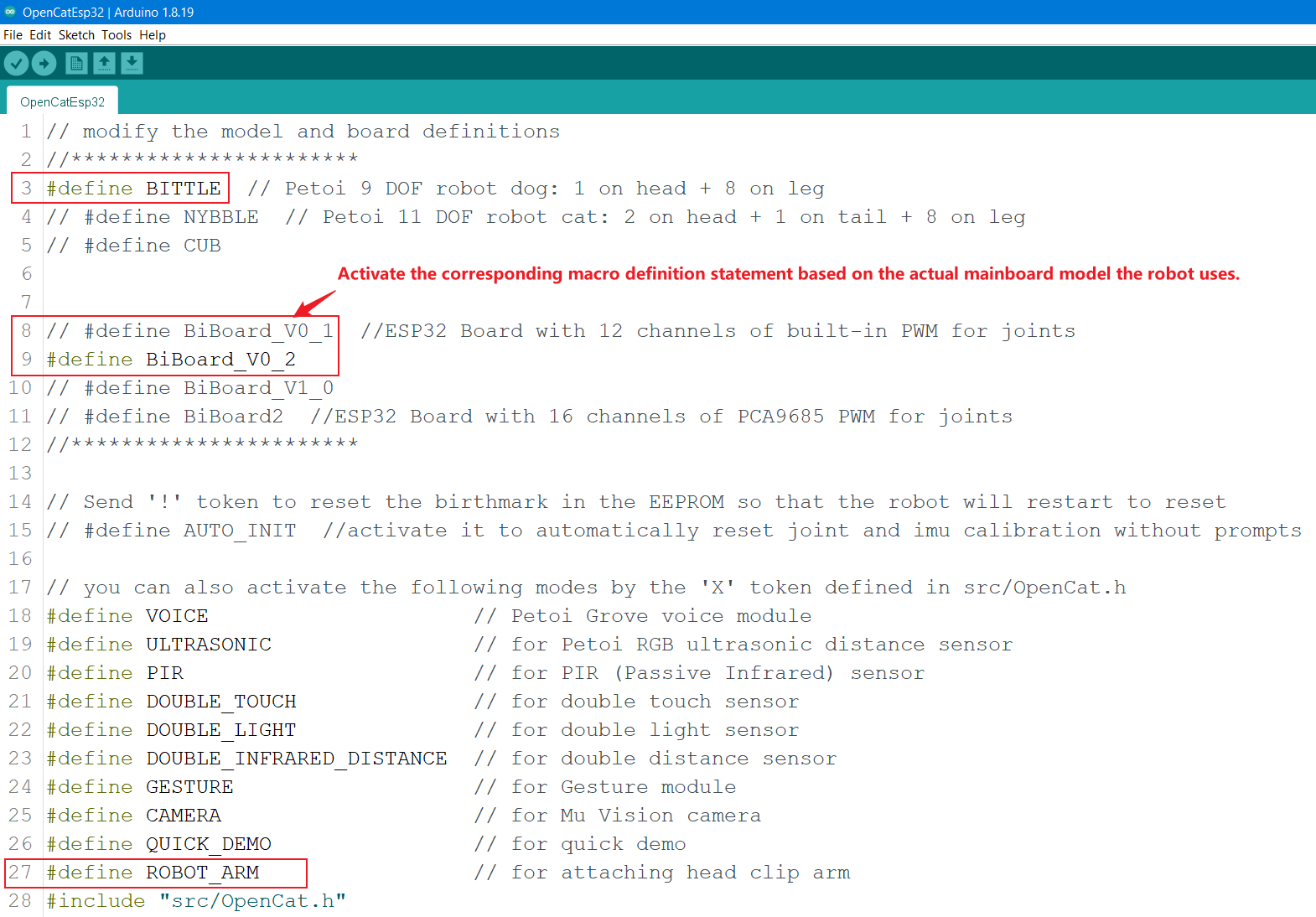

Or via Arduino IDE with the following macro activated:

#define BITTLE
#define BiBoard_V0_*  // Activate the corresponding macro definition statements in the code based on the actual mainboard model the robot uses.
#define ROBOT_ARM

3. Wiring

Please refer to the wiring diagram to attach the robotic arm。

4. Calibration

5. Controller

The robot arm needs to be calibrated to work correctly. Please refer to the for details.

We have the to provide an intuitive and prompt control for the robot.

corresponding chapter
Micro:Bit controller
Bittle robotic arm gripper extension kit with alloy servos
