  1. Extensible Modules

Joystick with Micro:Bit

PreviousUpgrade your older Bittle/Bittle X for the robotics arm gripperNextMelody Creation

Last updated 6 days ago

Was this helpful?

This remote controller is a Micro: Bit-based gamepad. It includes a 4-direction joystick and four undefined buttons. To enhance the gaming experience, it is also paired with a buzzer and vibration motor. It is compact in appearance, comfortable in hand, and can be remotely controlled.

Hardware

Micro: Bit V1 has a smaller memory. So, the full functionality requires Micro: Bit V2.

Software setup

We recommend you use the Chrome browser.

Alternatively, you can click "New Project" and drag the program file into the coding window to load it.

Download the program to the Micro: Bit V2

Connect your PC to the Micro: Bit V2 using a USB cable.

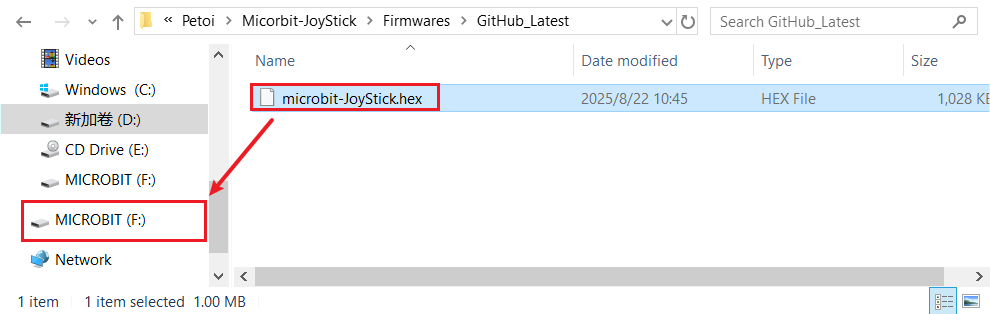

After a successful connection, a disk drive named MICROBIT is recognized on the computer.

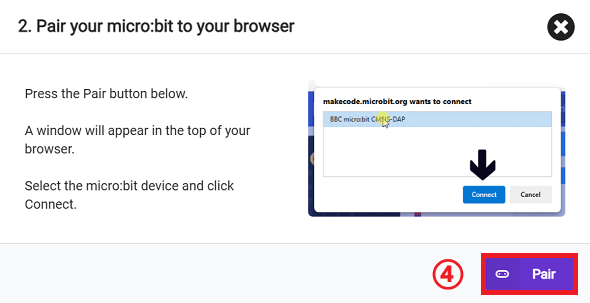

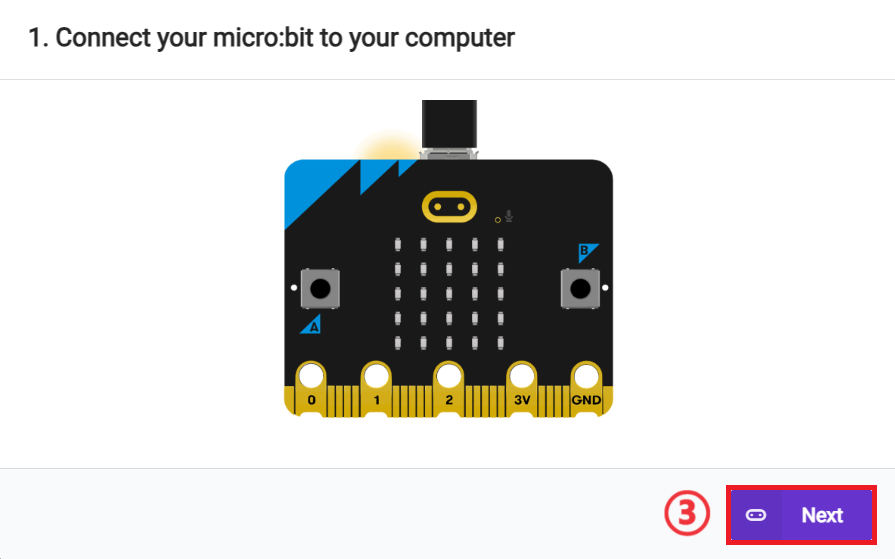

Select BBC micro:bit CMSIS-DAP in the pop-up window and then select Connect. At this point, our Micro: Bit has connected successfully.

Click to download the program.

How to use

  1. Power on the robot. During bootup, it can connect to the controller automatically via Bluetooth. If there are many remote controllers and robots, the connection is one-to-one and first-come, first-served.

Timed lock feature

This feature limits the play time for each user during exhibitions or science festivals. It is deactivated by default.

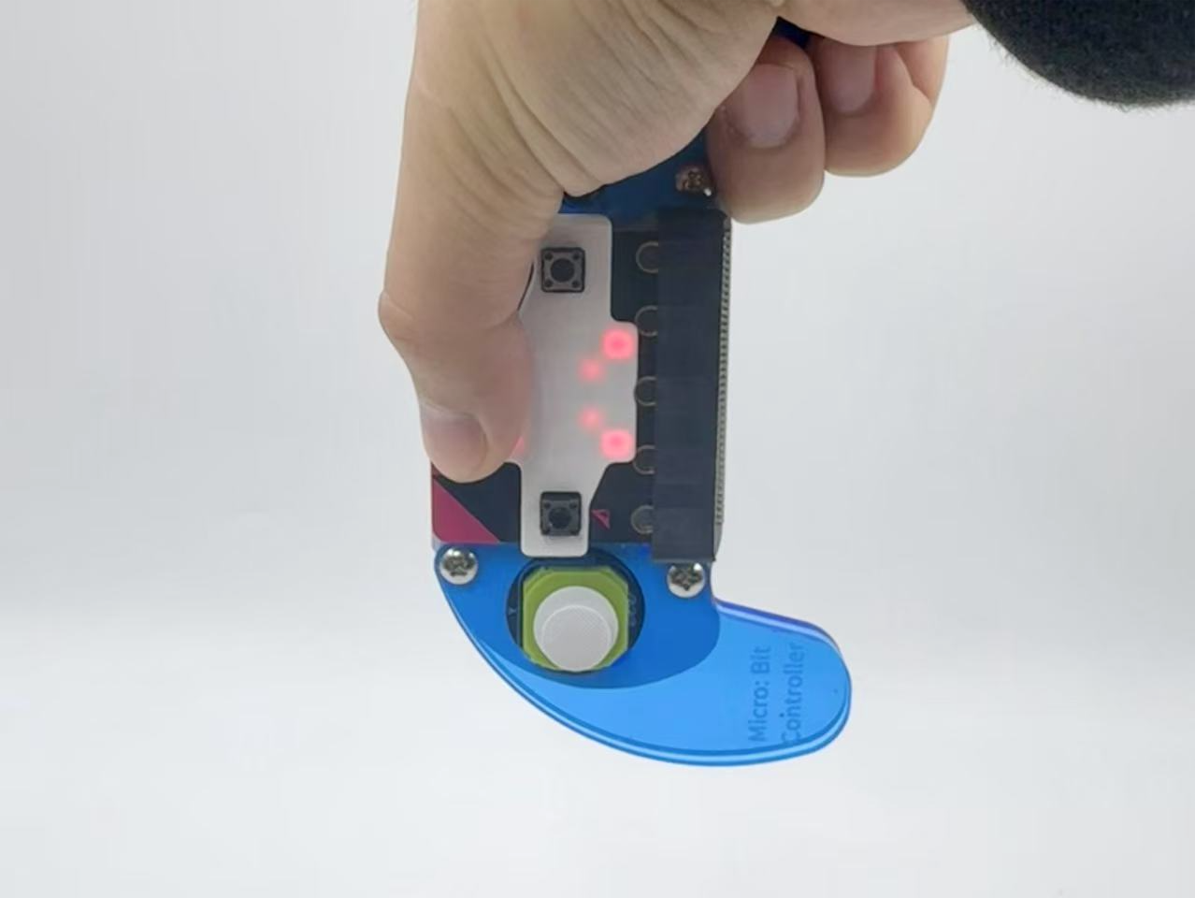

After normal startup and Bluetooth connection, you can activate the limited-time usage function for the controller by pressing and holding the middle Logo (touch button) on the Micro:bit while keeping the controller upright (with the left joystick at the bottom). Once activated, the controller will send a rest command to the robot every 20 minutes and no longer respond to subsequent operations. The LED indicator matrix will dynamically display an hourglass pattern, as shown in the figure below:

You can reset the countdown and reactivate the controller using the same operation described above. The controller will play a prompt tone, and the LED indicator matrix will display an animation of an hourglass reversing.

Once the limited-time feature is activated, it can only be turned off by rebooting the controller. After the controller restarts, you must reset the robot (by clicking the reset button on the mainboard) or reboot the robot to reconnect.

Controller function introduction

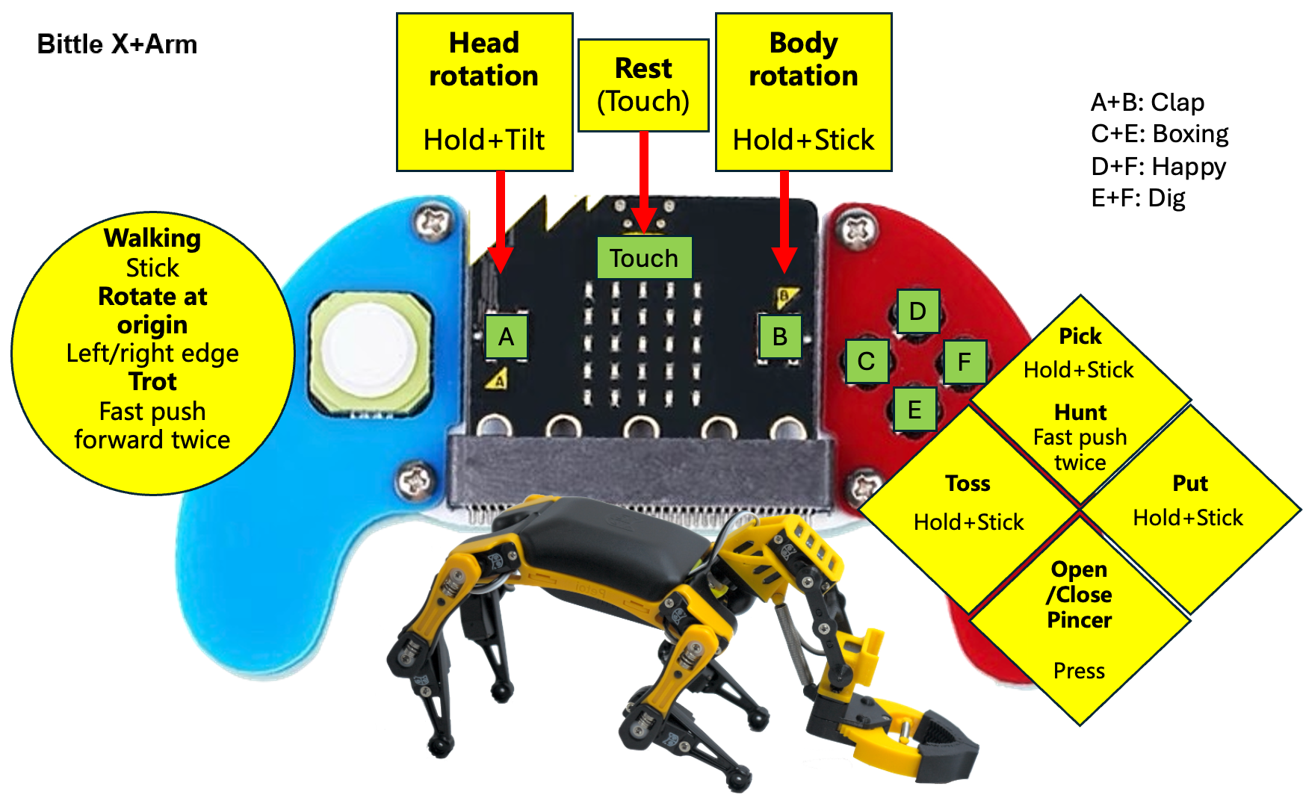

To control Bittle X+Arm (with robot arm):

Demo

To control Bittle X:

To control Nybble Q:

The Joystick's source code is now open-sourced. It can control Bittle X, Bittle X+Arm (Bittle with a robotic arm), and Nybble Q. For more information, please refer to our .

You can download the program file(), then import the program to as follows:

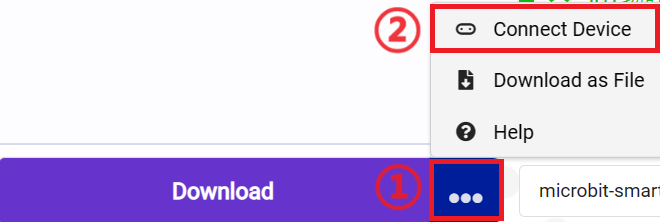

Click on the bottom left corner of the button, Select Connect Device.

Click button.

Click

to the robot (mainboard type: BiBoard)

Install 2 x #7 AAA batteries and plug in the Micro: Bit V2 to the remote controller. Then, power on the remote controller as follows:

🎮
GitHub repository
microbit-JoyStick.hex
the programming platform MakeCode
Upload the newest firmware
